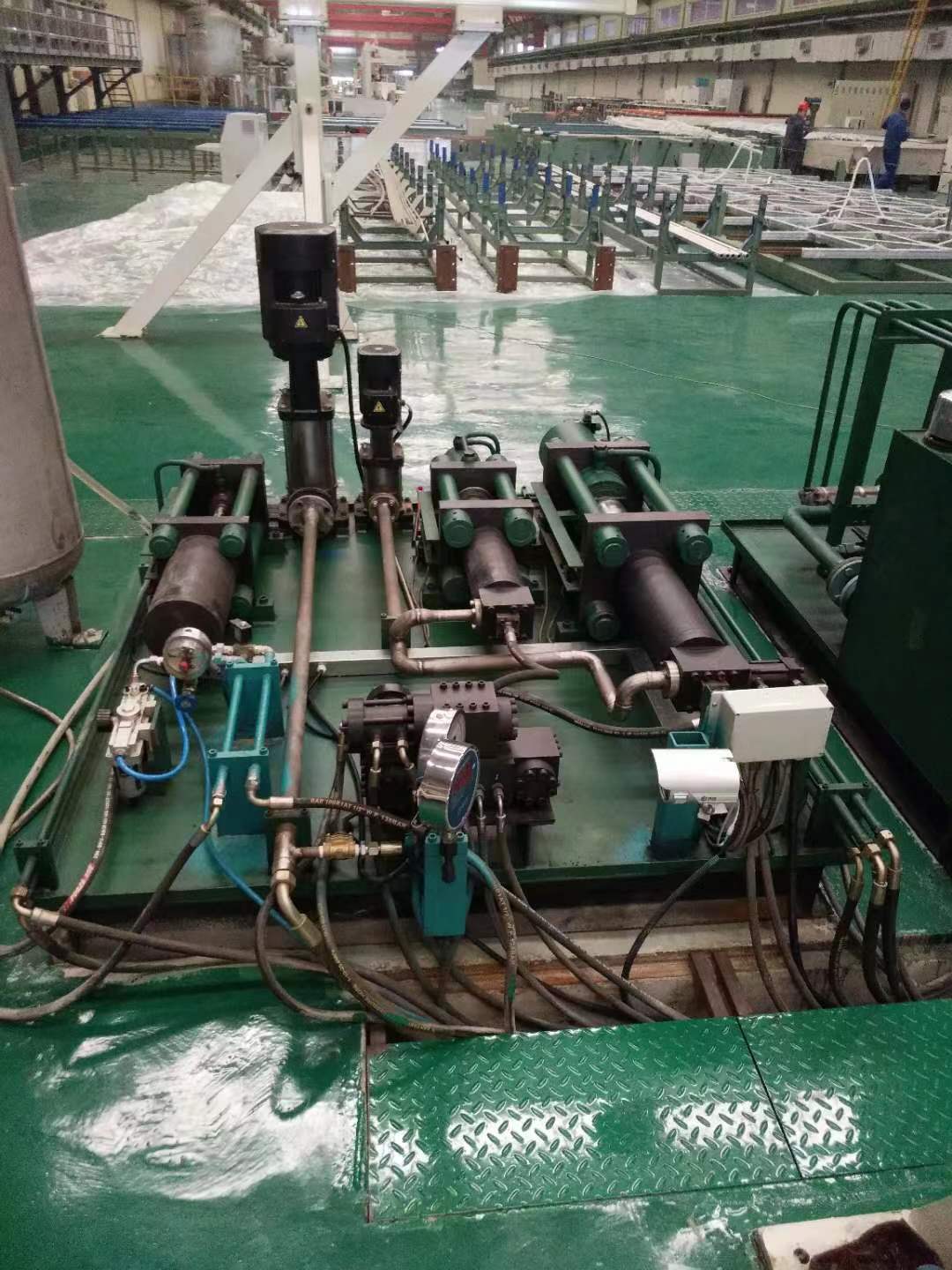

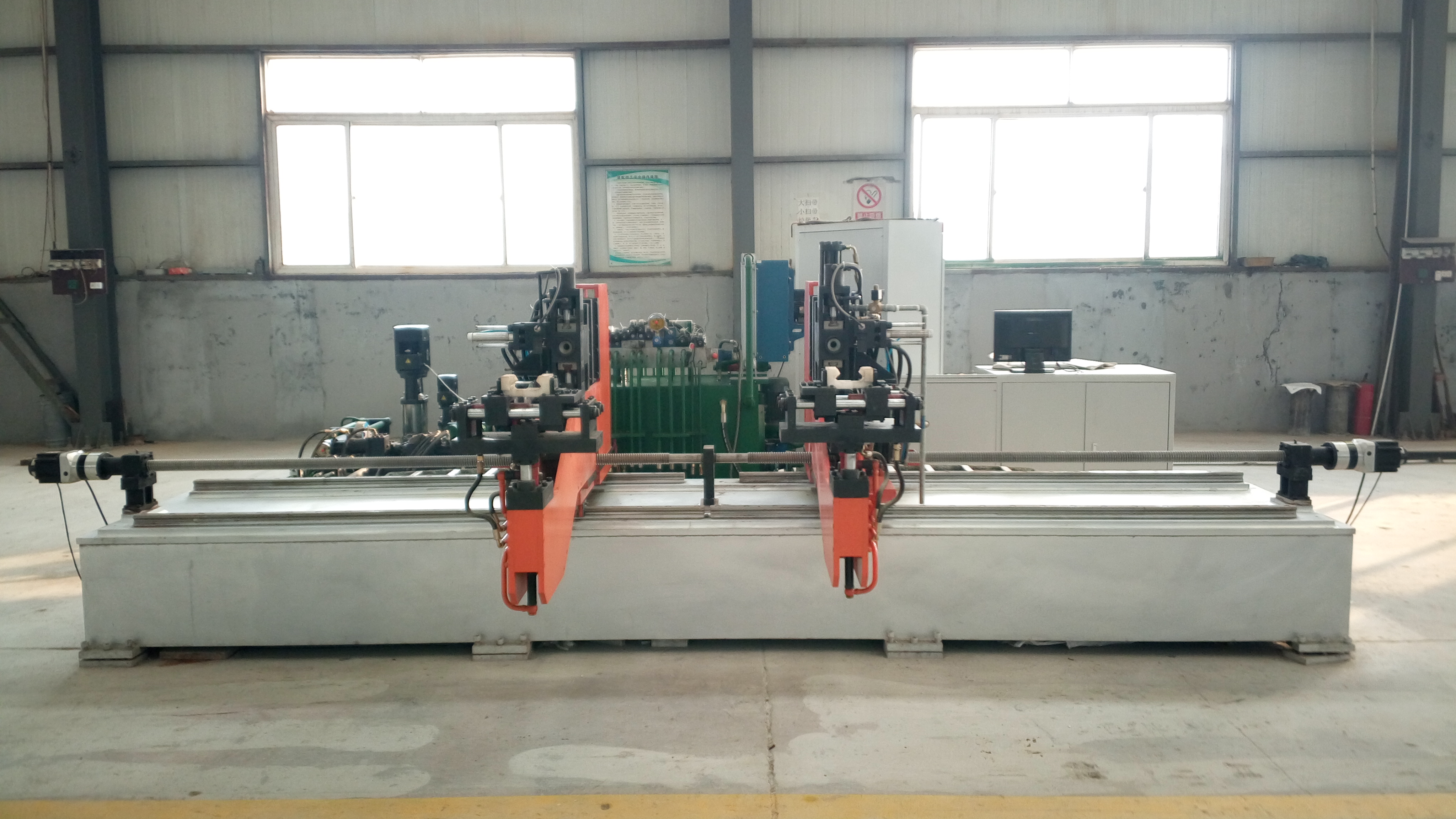

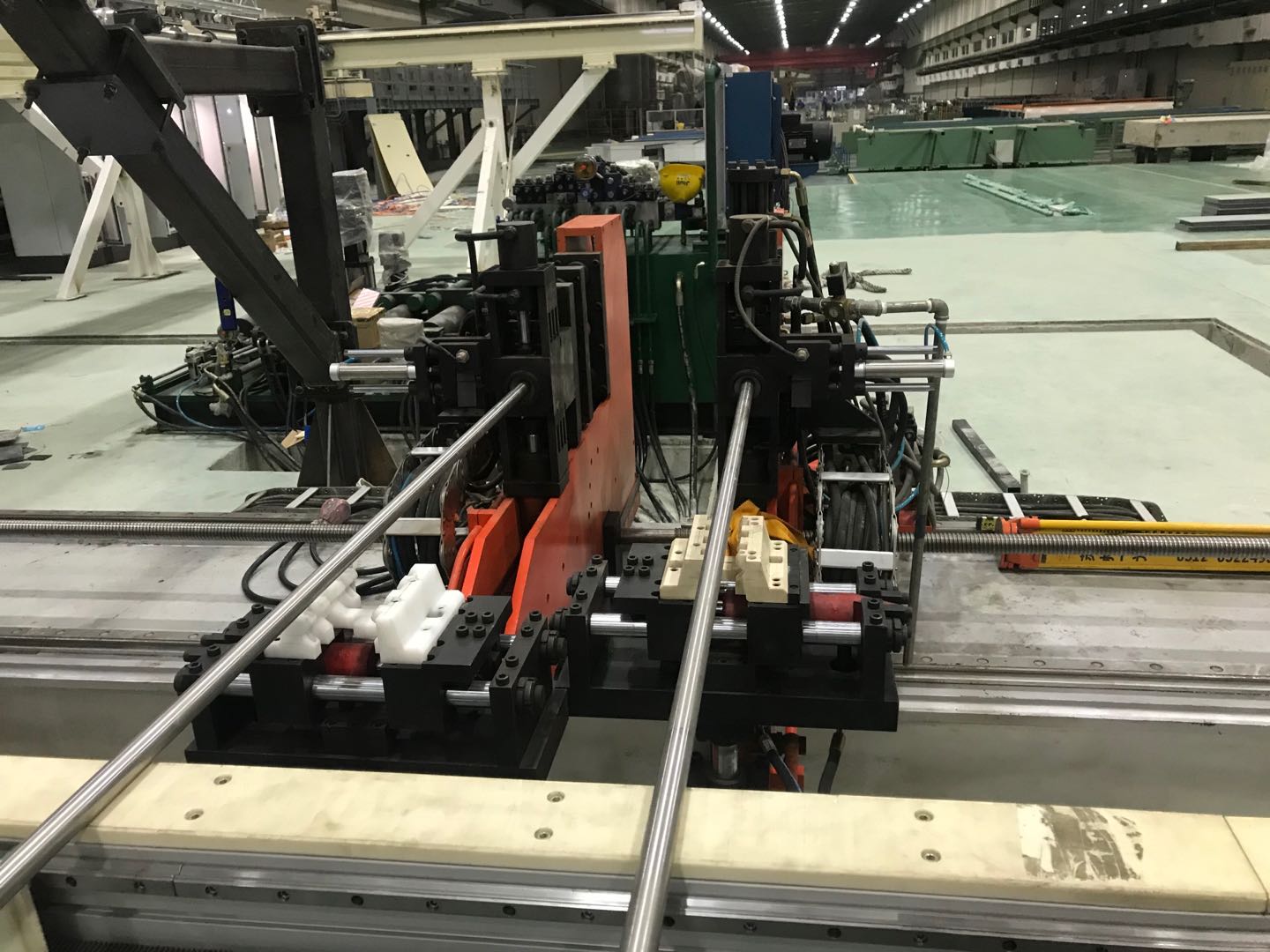

Most modern Hydro Testing Machine for Pipe systems can test multiple pipe diameters. The real difference isn't the testing range; it's how much production time is lost every time the pipe size changes.
For manufacturers producing different specifications every day, inefficient changeovers often reduce productivity more than the hydrostatic test itself.Before choosing a machine, these are the four areas worth evaluating.
1. Changeover Time Matters More Than Testing Pressure
Maximum pressure is usually the first specification buyers compare.
In reality, production efficiency is more likely to be affected by changeover time.
Every pipe size change may require operators to replace seals, adjust clamps, reposition the pipe centerline and load new testing parameters. If these adjustments take 15 minutes, several specification changes can easily consume hours of production every week.
A machine that changes sizes quickly often delivers higher output than one with a higher maximum pressure.
|
Production Factor |
Why It Matters |
|
Changeover time |
Reduces production downtime |
|
Seal replacement |
Maintains testing accuracy |
|
Stored programs |
Eliminates repeated parameter setup |
|
Clamp adjustment |
Speeds up switching between pipe sizes |
2. One Pressure Program Doesn't Fit Every Pipe
Different diameters don't always require the same testing procedure.
Large pipes respond differently from small pipes during pressurization, while wall thickness also affects pressure holding time.
Instead of adjusting every parameter manually, many manufacturers store multiple testing recipes in the control system. Operators simply select the correct pipe specification before testing begins.
This reduces setup errors and improves consistency between production batches.
3. Fast Changeovers Shouldn't Reduce Accuracy
Speed is valuable only when testing accuracy remains unchanged.
After every specification change, operators should verify:
✓ Pipe alignment
✓ Seal condition
✓ Pressure setting
✓ Pressure holding time
Skipping these checks may save a few minutes but often leads to unnecessary retesting later.
We've found that production delays are more often caused by specification changes than by hydrostatic testing itself. Improving changeover procedures usually increases output without increasing testing speed.
4. Buy for Daily Production, Not Maximum Specifications
A specification sheet tells you what a machine can do.
It doesn't tell you how efficiently operators can use it.
When comparing two Hydro Testing Machine for Pipe suppliers, ask practical questions:
- How long does a typical size change take?
- Can different pipe programs be saved?
- Can one operator complete the adjustment?
- How many seal sets are supplied?
These answers have a greater impact on operating costs than a slightly higher pressure rating.
A good Hydro Testing Machine for Pipe isn't the one that accepts the most pipe sizes—it's the one that switches between them quickly, accurately and consistently.
