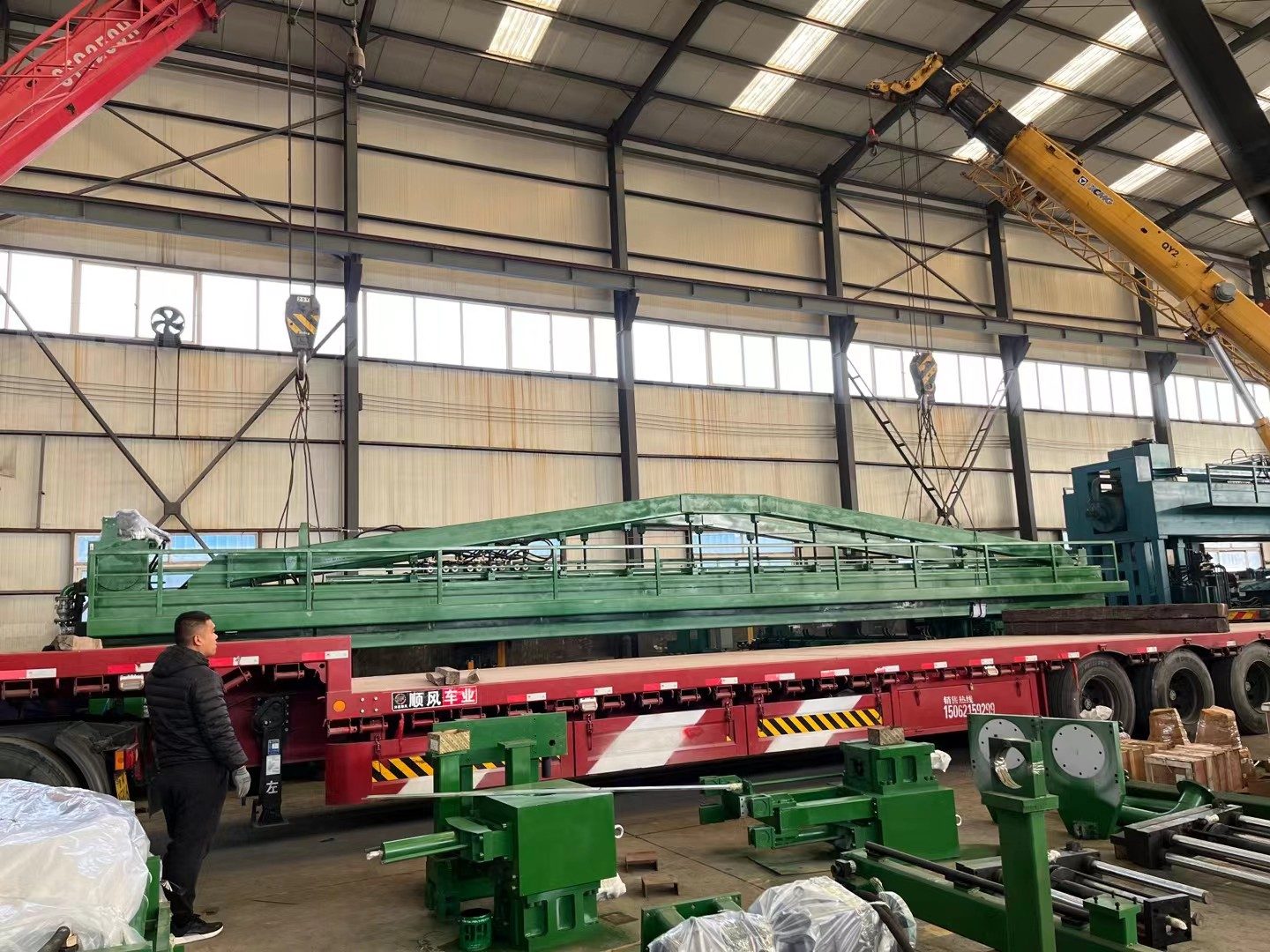

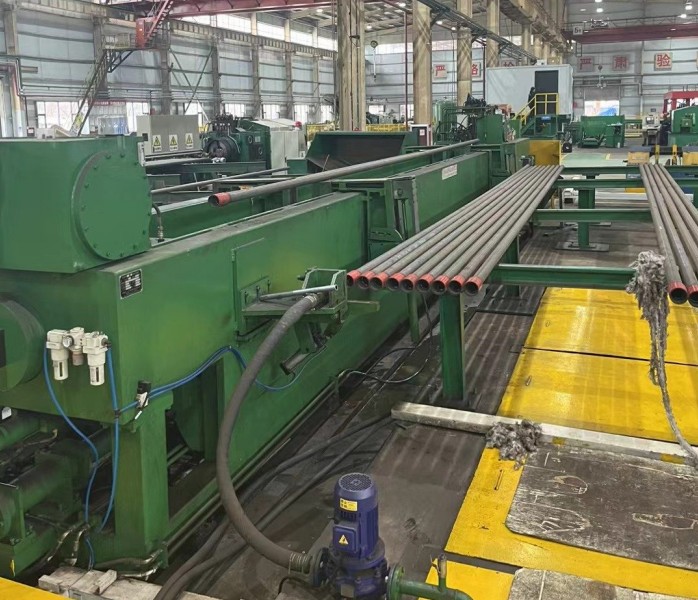

A hydro testing machine for pipe is not simply a high-pressure water pump. In a steel pipe mill, it is a complete pressure-testing system that must position the pipe, seal both ends, fill the pipe with water, remove trapped air, raise the pressure to the specified test value, hold that pressure for the required period, record the test result, and release the pressure in a controlled sequence.
The machine therefore has to work as part of the production line. Its performance is determined not only by maximum pressure, but also by sealing reliability, filling time, pressure stability, pipe handling, instrumentation, and cycle time.
For line pipe, API Spec 5L remains an important reference for manufacturing, inspection and testing requirements; the current 47th edition was published in June 2026.
1. The Basic Working Sequence
A typical pipe hydro testing machine follows a controlled sequence rather than applying pressure immediately after the pipe enters the machine.
| Stage | Machine Operation | Main Engineering Purpose |
|---|---|---|
| 1. Pipe loading | Pipe enters the testing station | Establish correct position and alignment |
| 2. End positioning | Test heads move into position | Match pipe length and end geometry |
| 3. Sealing | Sealing system contacts both pipe ends | Create a pressure-tight test chamber |
| 4. Water filling | Test water enters the pipe | Fill the internal volume completely |
| 5. Air removal | Air is displaced through the filling/venting arrangement | Prevent compressible air from affecting the test |
| 6. Pressure build-up | High-pressure pump raises pressure | Reach the specified test pressure |
| 7. Pressure holding | Control system maintains pressure | Verify pressure integrity |
| 8. Recording | Pressure and test status are monitored | Provide objective test data |
| 9. Depressurization | Pressure is released in a controlled manner | Return the system to a safe condition |
| 10. Unloading | Test heads retract and pipe exits | Continue the production cycle |
The sequence can be automated through PLC control, but the underlying engineering logic remains the same.
2. Pipe Positioning Comes Before Pressure
Before a pipe hydro testing machine applies pressure, the pipe must be correctly positioned between the test heads.
This sounds simple, but alignment directly affects the sealing system. If the pipe axis is offset from the test-head axis, the sealing ring may experience uneven compression. At high pressure, this can produce local leakage even when the seal itself is correctly selected.
For production lines handling several pipe sizes, the machine therefore has to accommodate changes in:
- Outside diameter
- Pipe length
- Wall thickness
- Pipe-end condition
- Pipe weight
- Sealing configuration
The positioning system should provide repeatable contact rather than relying on the operator to manually correct every pipe.
3. Sealing Creates the Test Chamber
The sealing system is one of the most critical parts of a pipe hydro testing machine.
Once both test heads are engaged, the pipe and machine form a closed pressure chamber. The seal must maintain contact throughout filling, pressure build-up and pressure holding.
| Sealing Condition | Typical Effect |
|---|---|
| Poor pipe-end alignment | Uneven seal compression and leakage |
| Damaged pipe end | Local leakage at the sealing interface |
| Incorrect seal size | Insufficient or excessive compression |
| Worn sealing ring | Pressure loss during holding |
| Insufficient sealing force | Leakage as pressure increases |
| Excessive sealing force | Accelerated seal wear or pipe-end damage |
This is why a hydrostatic testing machine for pipe cannot be evaluated by pump pressure alone. A pump capable of reaching the required pressure is useless if the test head or sealing system cannot maintain that pressure.
4. Water Filling and Air Removal
After sealing, the pipe is filled with water.
The purpose is not simply to put water inside the pipe. The machine must achieve a sufficiently complete fill and minimize trapped air before high-pressure testing begins.
Air remaining inside the pipe changes the pressure response because it is compressible, while water is comparatively incompressible. It can also make pressure stabilization more difficult and reduce the consistency of the testing cycle.
In a production environment, filling performance is therefore closely related to:
- Pipe internal volume
- Filling flow rate
- Pipe length
- Filling arrangement
- Venting method
- Water temperature
- Internal pipe condition
For long or large-diameter pipes, filling volume can become a significant part of the machine cycle time.
5. Pressure Build-Up Is a Controlled Process
Once the pipe is filled and air has been adequately displaced, the high-pressure system raises the internal pressure.
A pipe hydrotest machine normally uses a hydraulic pump, valves, pressure sensors and control logic to achieve the required pressure. The pressure should increase in a controlled manner rather than simply running the pump at its maximum output.
The machine must be designed around the actual required test pressure and operating range of the pipe mill.
| Parameter | Why It Matters |
|---|---|
| Maximum test pressure | Determines pressure-system rating |
| Pipe OD | Affects end sealing and test-head configuration |
| Wall thickness | Influences the pipe's pressure resistance |
| Pipe length | Influences filling volume and cycle time |
| Steel grade | Forms part of the product test requirement |
| Hold time | Determines testing station occupancy |
| Production rate | Determines required machine cycle |
| Pressure accuracy | Determines reliability of test results |
There is no universal test pressure that applies to every steel pipe. The required value must come from the applicable product specification, purchase requirements and testing procedure.
6. Pressure Holding Is the Actual Test
Reaching the target pressure is only one part of hydrostatic testing.
The machine must then maintain the required pressure for the specified test period while monitoring the pressure signal.
A pressure drop can have several possible causes:
- Leakage from the pipe.
- Leakage through the test-head sealing system.
- Leakage in valves or high-pressure piping.
- Trapped air or incomplete filling.
- Temperature-related pressure variation.
- Instability in the pressure-control system.
- Instrumentation or signal problems.
An experienced operator or engineer therefore does not treat every pressure drop as a pipe defect.
The first diagnostic step is to determine whether the pressure loss originates from the test object, sealing interface, pressure circuit, or measurement system.
7. Instrumentation Determines Whether the Result Can Be Trusted
A modern pipe hydro testing machine normally uses pressure sensors and gauges connected to the control system.
The instrumentation should allow the operator or quality system to determine:
- Actual test pressure
- Pressure rise
- Pressure holding period
- Pressure stability
- Test completion status
- Abnormal pressure changes
For automated steel pipe testing, the PLC can control the pressure sequence and interlocks while the upper-level system records the test result.
The measurement chain must be considered as a complete system. A correctly calibrated sensor cannot compensate for an incorrectly configured PLC pressure limit, and a reliable PLC cannot compensate for an inaccurate pressure transmitter.

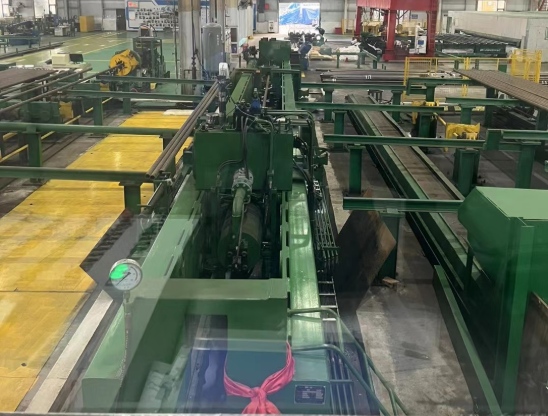

8. How the Machine Fits into a Steel Pipe Mill
A hydro testing machine is normally positioned after the relevant pipe-forming, welding, heat-treatment and dimensional processes and before final inspection, coating or dispatch, depending on the production route.
Its practical value comes from integrating testing into production rather than treating hydrostatic testing as a separate laboratory operation.
The machine must therefore balance two requirements:
Test reliability: every pipe must be tested at the specified pressure and holding condition.
Production efficiency: the testing cycle must not become a bottleneck for the pipe mill.
For this reason, a steel pipe manufacturer should evaluate the machine using the complete production matrix rather than one nominal pipe size.
For example, a machine intended for several pipe diameters should be evaluated against the smallest and largest OD, wall thickness range, maximum test pressure, pipe length, sealing method and required production rate.
9. What Happens When the Machine Does Not Perform Correctly?
The machine's operating symptoms often provide useful diagnostic information.
| Observed Condition | First Engineering Checks |
|---|---|
| Pressure cannot reach target | Pump capacity, water filling, trapped air and leakage |
| Pressure rises too slowly | Filling flow, valve position and pump performance |
| Pressure drops immediately after isolation | Pipe-end seal, test head, valves and connections |
| Seal leaks only at high pressure | Alignment, sealing force, seal condition and pipe-end geometry |
| Pressure fluctuates | Air, control-valve response, pump behavior and instrumentation |
| Gauge and sensor disagree | Calibration and measurement chain |
| Pressure is reached but hold fails | Leakage path and pressure isolation system |
This type of diagnosis is more useful than simply stating that a machine has a certain maximum pressure.
10. The Engineering Principle Behind a Pipe Hydrostatic Testing Machine
The working principle can be summarized as:
Position → Seal → Fill → Vent → Pressurize → Hold → Measure → Release → Unload
Every stage affects the next one.
Poor alignment can cause sealing problems. Poor filling can affect pressure stability. An unstable pressure system can make a sound pipe appear questionable. Incorrect instrumentation can produce unreliable test records.
For this reason, a hydro testing machine for pipe should be designed as an integrated mechanical, hydraulic and control system.
The correct selection question is not simply:
“How many MPa can the machine reach?”
The more useful engineering question is:
Can the complete machine repeatedly test the full pipe production range at the specified pressure, maintain that pressure for the required period, accurately measure the result, and complete the cycle at the required production rate?
That is the real operating requirement for a pipe hydro testing machine in a steel pipe mill.
Standards and Engineering Reference
API Spec 5L covers requirements associated with the manufacture, inspection, testing, marking and traceability of seamless and welded steel line pipe; API published its 47th edition in June 2026.
Where hydrostatic testing relates to process piping rather than finished steel pipe product testing, the applicable code must be identified separately. ASME B31.3, for example, covers the design, fabrication, examination, inspection and testing of process piping within its defined scope.
The applicable product specification, purchase order and test procedure should always govern the actual test pressure, hold conditions and acceptance criteria.
