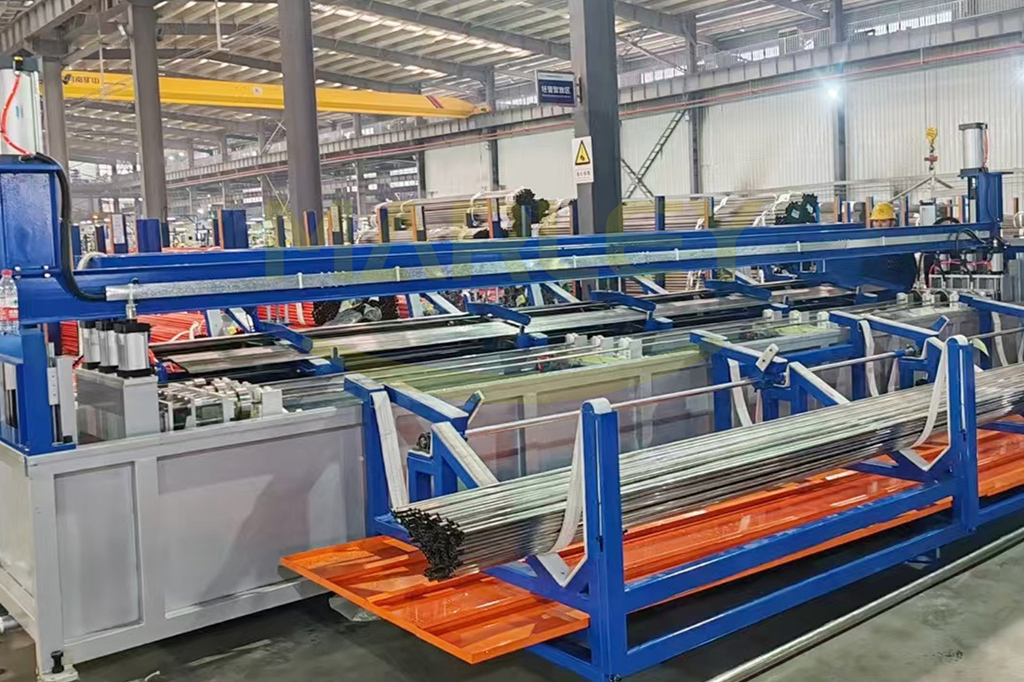

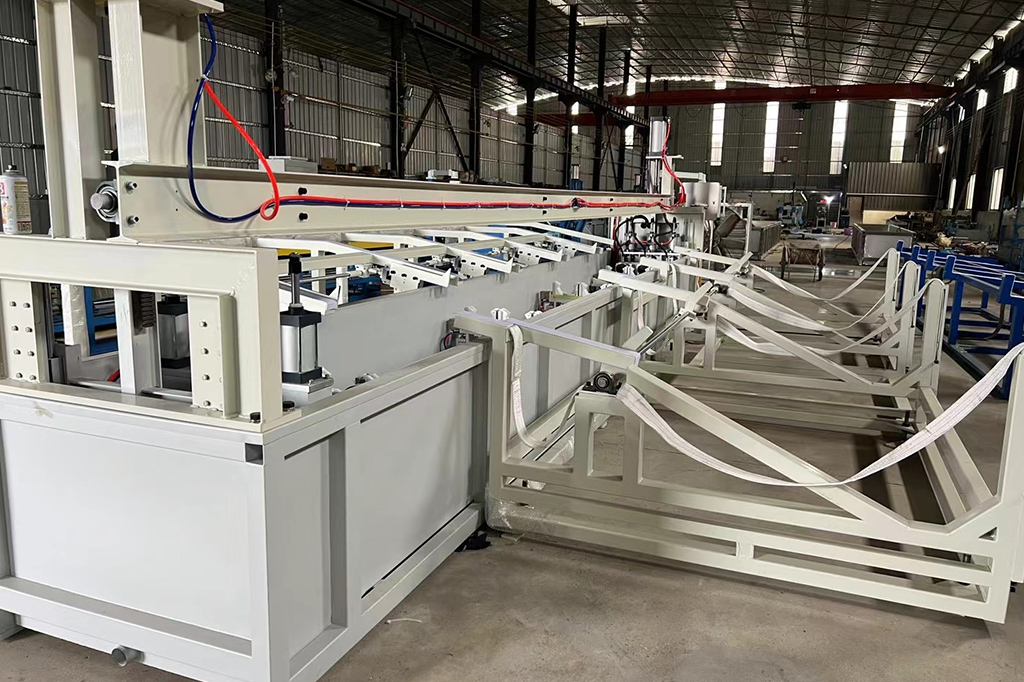

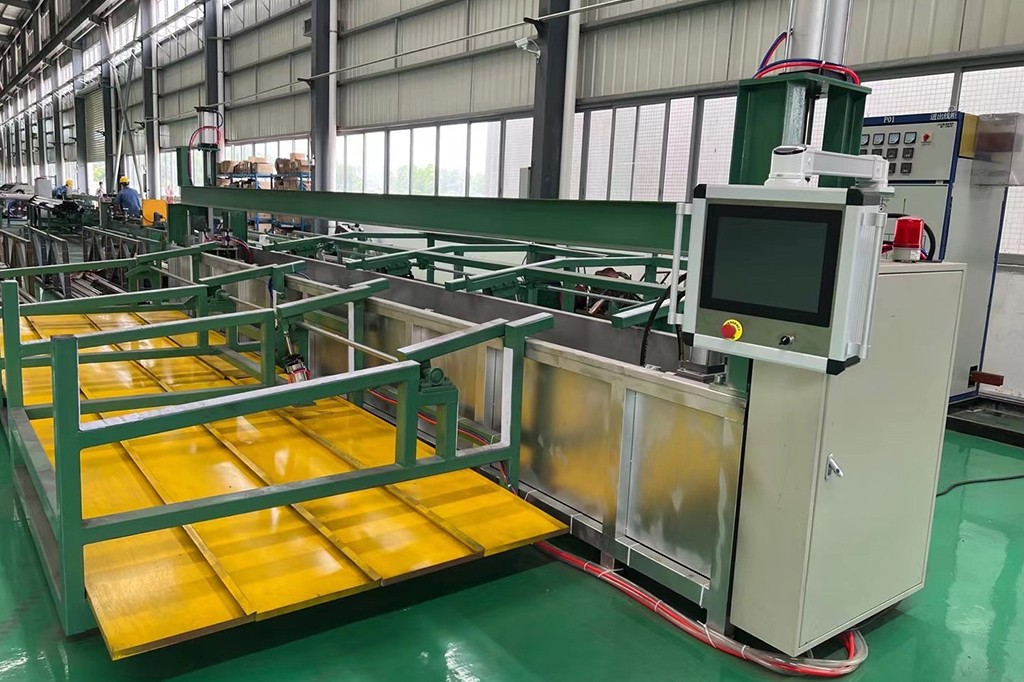

PIPE GAS TIGHT PRESSURE TESTING MACHINE
This equipment is mainly used for airtight pressure testing of stainless steel pipelines, using radial sealing or end sealing methods.
The end face sealing wedge has a patented force-increasing design, and the air pressure can reach 1.5Mpa.
The radial sealing method can detect air pressure up to 3.0Mpa.
It has functions such as remote networking, visual intelligent detection system, automatic sorting of unqualified products, automatic shutdown alarm, etc.
| Name | Model | Caliber range(mm) | Polishing length/m | Station | Teat pressure | Sealing method | Loading | Off loading | Capabilities |
| Pipe gas tight pressure testing machine | ZYSY-25 | φ10-φ25 | 1-30 | 3-5 | 1.5Mpa | End face seal | Semi-automatic | Lossless off loading | Automatic sorting,remote networking |
| Pipe gas tight pressure testing machine | ZYSY-63 | φ15-φ63 | 1-30 | 3-5 | 1.5Mpa | End face seal | Semi-automatic/Automatic | Lossless off loading | Automatic sorting,remote networking |
| Pipe gas tight pressure testing machine | ZYSY-100 | φ51-φ114 | 2-40 | 3 | 1.5Mpa | End face seal | Semi-automatic/Automatic | Lossless off loading | Automatic sorting,remote networking |
| Pipe gas tight pressure testing machine | ZYSY-114 | φ15-φ114 | 2-40 | 3 | 1.5Mpa | End face sea | Semi-automatic/Automatic | Lossless off loading | Automatic sorting,remote networking |
| Pipe gas tight pressure testing machine | ZYSJ-50 | φ6-φ50 | 2-20 | 3-5 | 3.0Mpa | Radial seal | Semi-automatic | Lossless off loading | Automatic sorting,remote networking |
