Product Overview

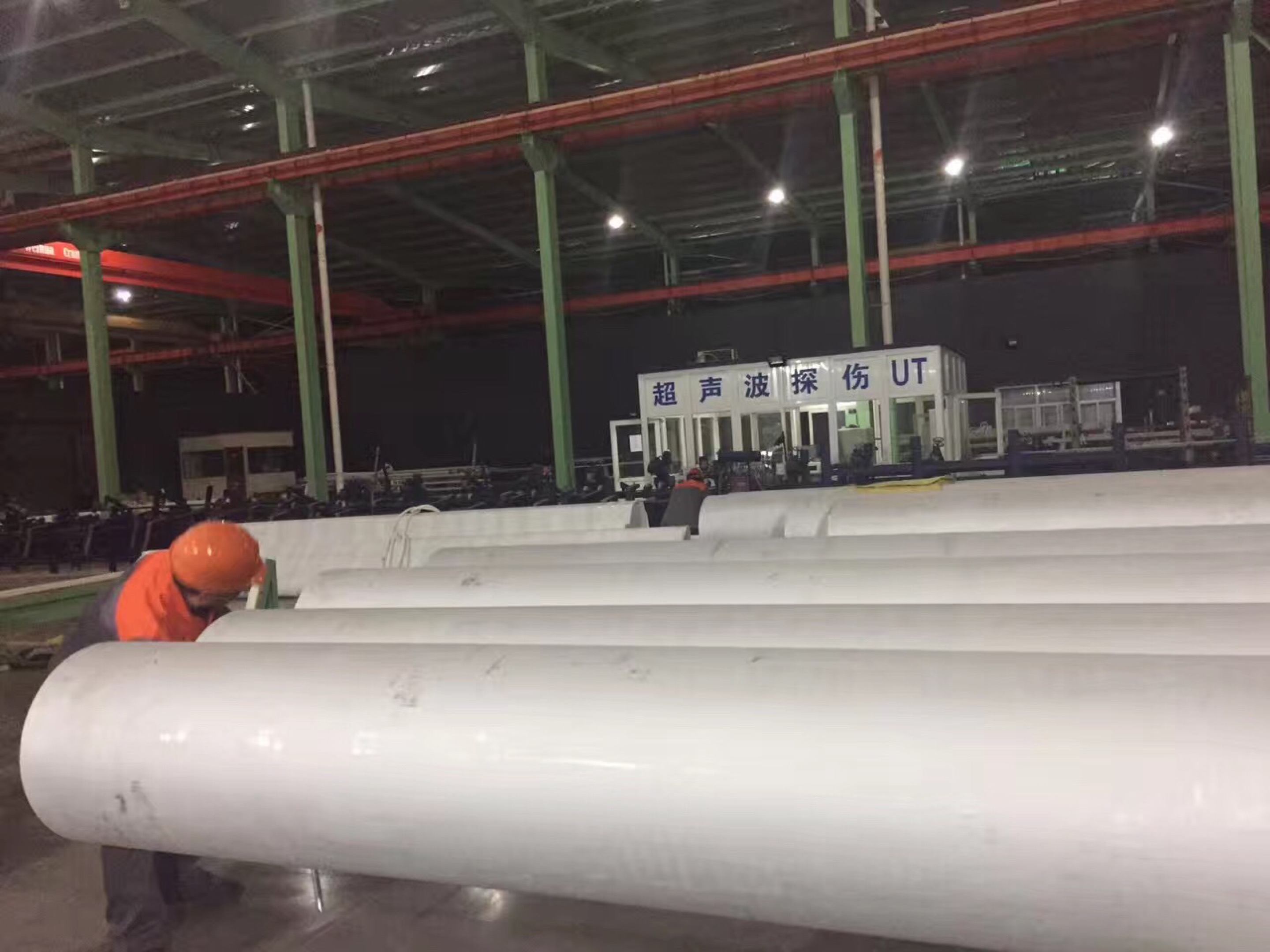

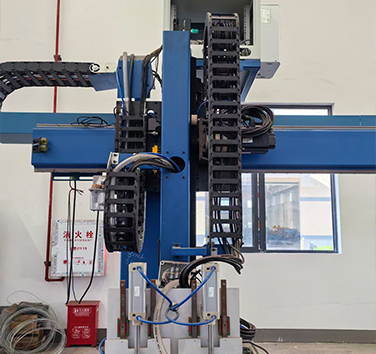

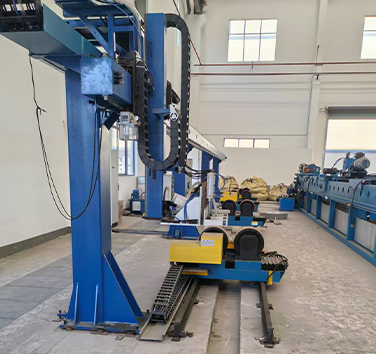

The Non Destructive Testing Pipe Machine is a professional industrial inspection system used for evaluating the internal and external quality of steel pipes without damaging the material.
It is widely used in pipeline manufacturing, oil and gas industries, power plants, and heavy industrial production lines.
This system applies advanced non destructive testing (NDT) technology, especially ultrasonic-based inspection, to ensure every pipe meets strict safety and quality standards.
As a modern NDT pipe testing machine, it delivers high accuracy, real-time inspection, and stable performance for continuous production environments.
Main NDT Methods for Pipe Inspection
|
NDT Method |
Detection Type |
Accuracy |
Speed |
Application Range |
Cost |
|
Ultrasonic Testing (UT) |
Internal cracks, inclusions, wall thickness |
High |
Fast |
Steel & alloy pipes |
Medium |
|
Eddy Current Testing (ET) |
Surface & near-surface defects |
Medium |
Very Fast |
Small diameter pipes |
Low |
|
Magnetic Particle Testing (MT) |
Surface cracks (ferromagnetic materials) |
Medium |
Medium |
Carbon steel pipes |
Low |
|
Radiographic Testing (RT) |
Internal structural imaging |
Very High |
Slow |
Critical weld inspection |
High |
Working Principle
The machine works by transmitting ultrasonic waves into the pipe wall. When the waves encounter internal defects such as cracks, voids, or inclusions, they reflect back differently.
The system collects and processes these signals in real time and converts them into digital inspection results.
This ensures accurate, non-destructive evaluation without affecting pipe integrity or production flow.
Key Features
✔ Advanced non-destructive testing technology
✔ High-speed automatic inspection system
✔ Real-time defect detection and analysis
✔ Suitable for online production line integration
✔ Compatible with carbon steel, stainless steel, alloy pipes
✔ Stable 24/7 industrial operation capability
Applications
The Non Destructive Testing Pipe Machine is widely used in:
- Steel pipe manufacturing industry
- Oil & gas pipeline inspection
- Petrochemical pipeline systems
- Power plant piping inspection
- Structural steel quality control
- Pressure vessel manufacturing
Technical Advantages
|
Feature |
Benefit |
|
Non-destructive inspection |
No damage to pipe material |
|
High-speed scanning |
Improves production efficiency |
|
Digital signal processing |
Enhances defect accuracy |
|
Automated operation |
Reduces labor cost |
|
Industrial-grade design |
Supports long-term continuous use |
Why Choose Our NDT Pipe Testing Machine
We provide high-performance non destructive testing pipe machines designed for global industrial applications. Our system can be customized based on pipe diameter, material type, and production speed requirements.
We also provide:
- Full production line integration solutions
- Technical installation and commissioning
- Operator training and support
- Long-term after-sales service
The Non Destructive Testing Pipe Machine is an essential solution for modern pipe quality inspection. It ensures accurate defect detection, improves production efficiency, and guarantees compliance with international standards.
If you are looking for a reliable NDT pipe testing machine manufacturer, we provide cost-effective and industrial-grade solutions for your production line.
