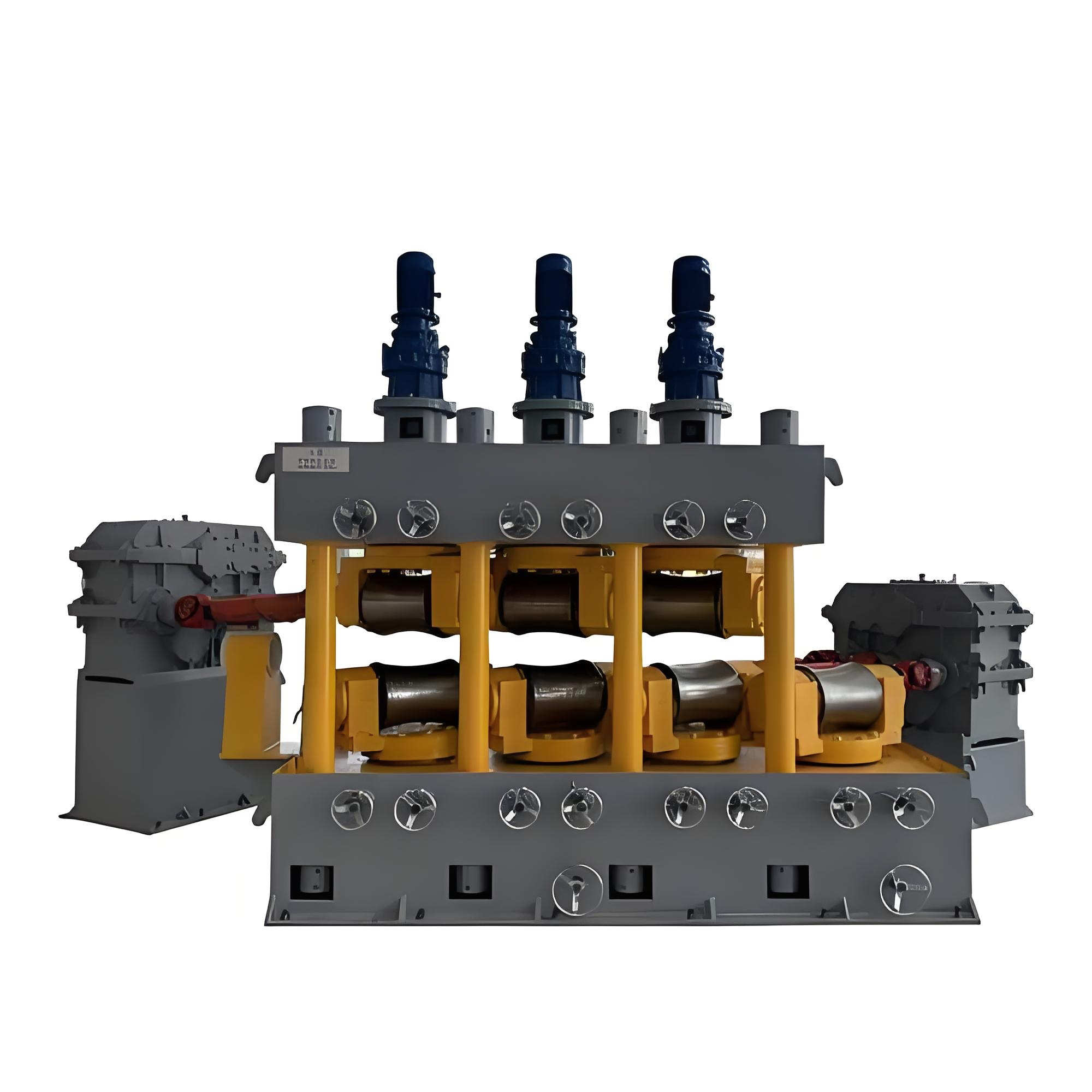

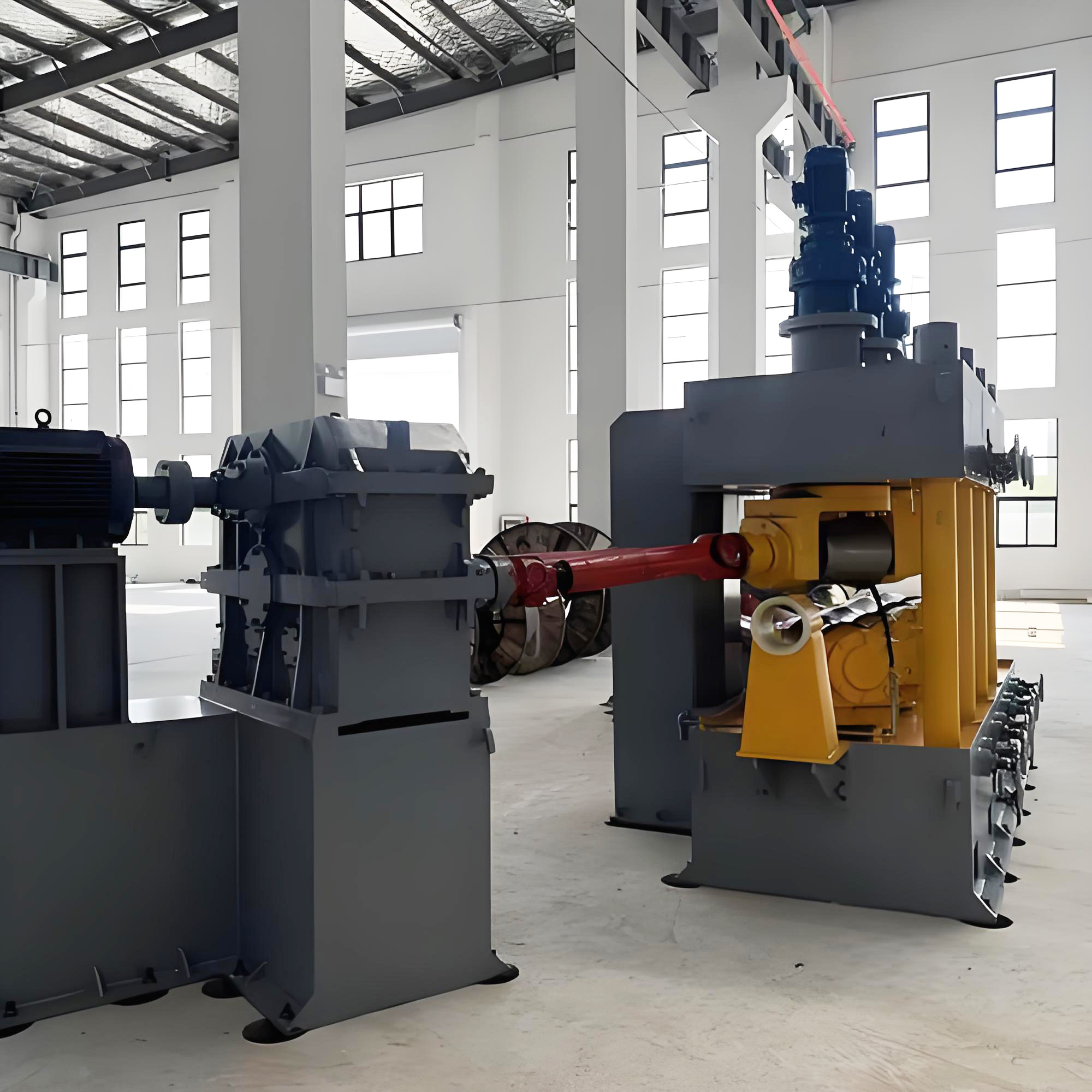

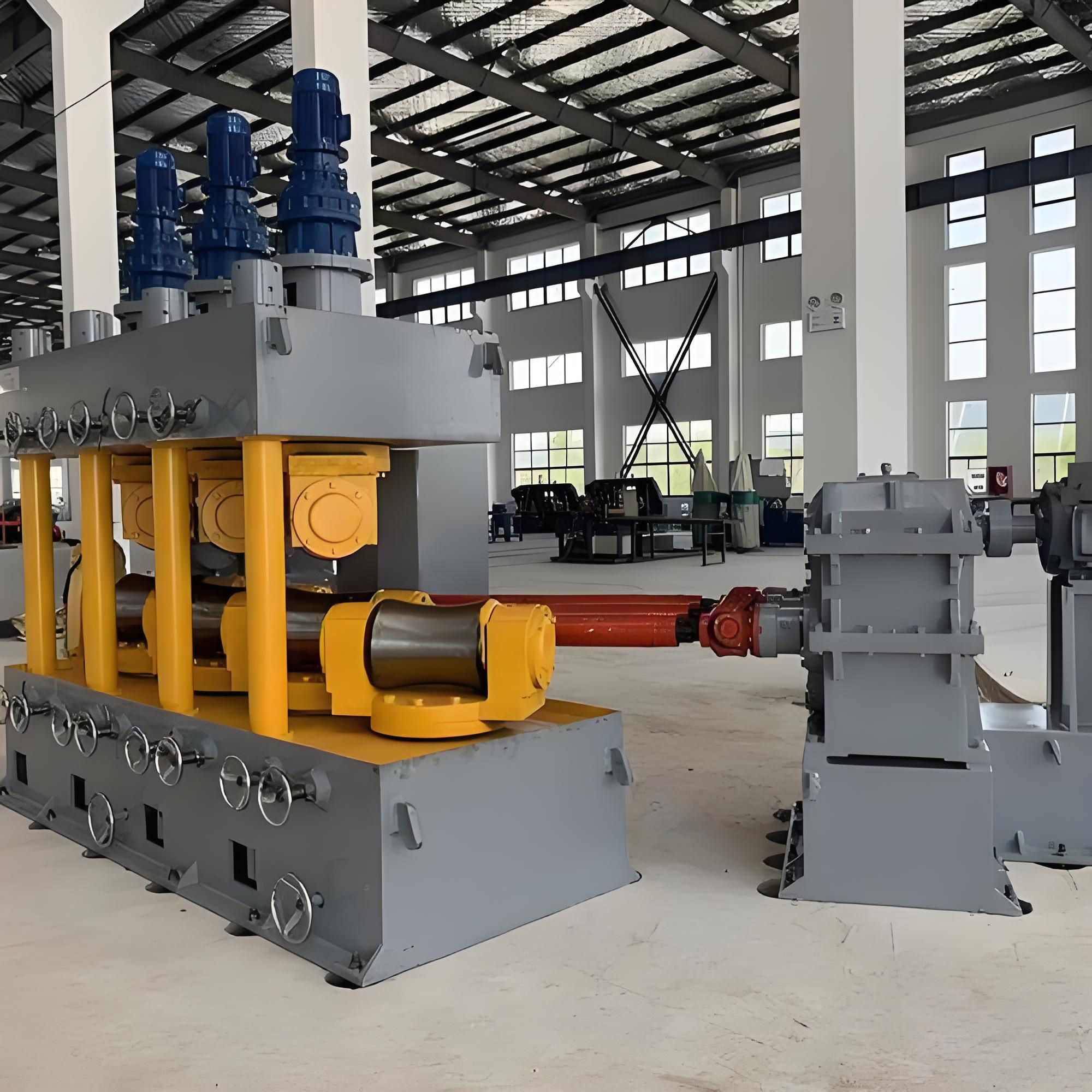

The bar straightening machine is used to straighten solid metal bars by eliminating curvature and internal stress caused during rolling or heat treatment processes.
Key Features
-
Designed for solid bars
-
Strong straightening force
-
Adjustable roller configuration
-
High productivity and durability
Applications
-
Carbon steel bars
-
Alloy steel bars
-
Engineering and construction materials
Benefits
-
Uniform straightness along full length
-
Improves machining accuracy
-
Reduces material waste
Technical parameter table structure
| Parameter | Specification |
|---|---|
| Model | BSM-20 / BSM-40 |
| Applicable Bar Diameter | Φ6–Φ80 mm |
| Bar Material | Carbon, Alloy, Stainless |
| Straightening Speed | 10–50 m/min |
| Roller Configuration | Multi-roller |
| Straightness Tolerance | ≤1 mm/m |
| Motor Power | 3–30 kW |
| Weight | by model |
| Dimensions |
by model |
