A pipe testing machine does not detect one universal list of defects. The defects that can be found depend on the testing method, sensor arrangement, pipe geometry, material, calibration standard, and acceptance criteria.
For steel pipe production, hydrostatic testing, ultrasonic testing (UT), eddy-current testing and magnetic flux leakage are used for different purposes. A practical inspection system therefore starts with the defect types that need to be controlled, rather than selecting a testing machine by machine name alone.
Which Defects Can Different Pipe Testing Methods Detect?
| Testing Method | Typical Defects or Conditions Detected | Main Purpose |
|---|---|---|
| Hydrostatic testing | Through-wall leaks, leakage paths, pressure-boundary failures | Pressure integrity |
| Ultrasonic testing | Cracks, splits, inclusions, voids, pits and other discontinuities | Volumetric or localized NDT |
| Eddy-current testing | Surface and near-surface discontinuities affecting electromagnetic response | Rapid non-contact inspection |
| Magnetic flux leakage | Certain surface and near-surface imperfections in ferromagnetic pipe | Continuous defect screening |
The methods are complementary. ASTM E213, for example, describes ultrasonic examination of metal pipe and tubing for significant discontinuities including pits, voids, inclusions, cracks and splits. It also states that the practice itself does not establish acceptance criteria; those criteria must be specified by the parties using the inspection.
1. Hydrostatic Testing: Mainly a Pressure-Integrity Check

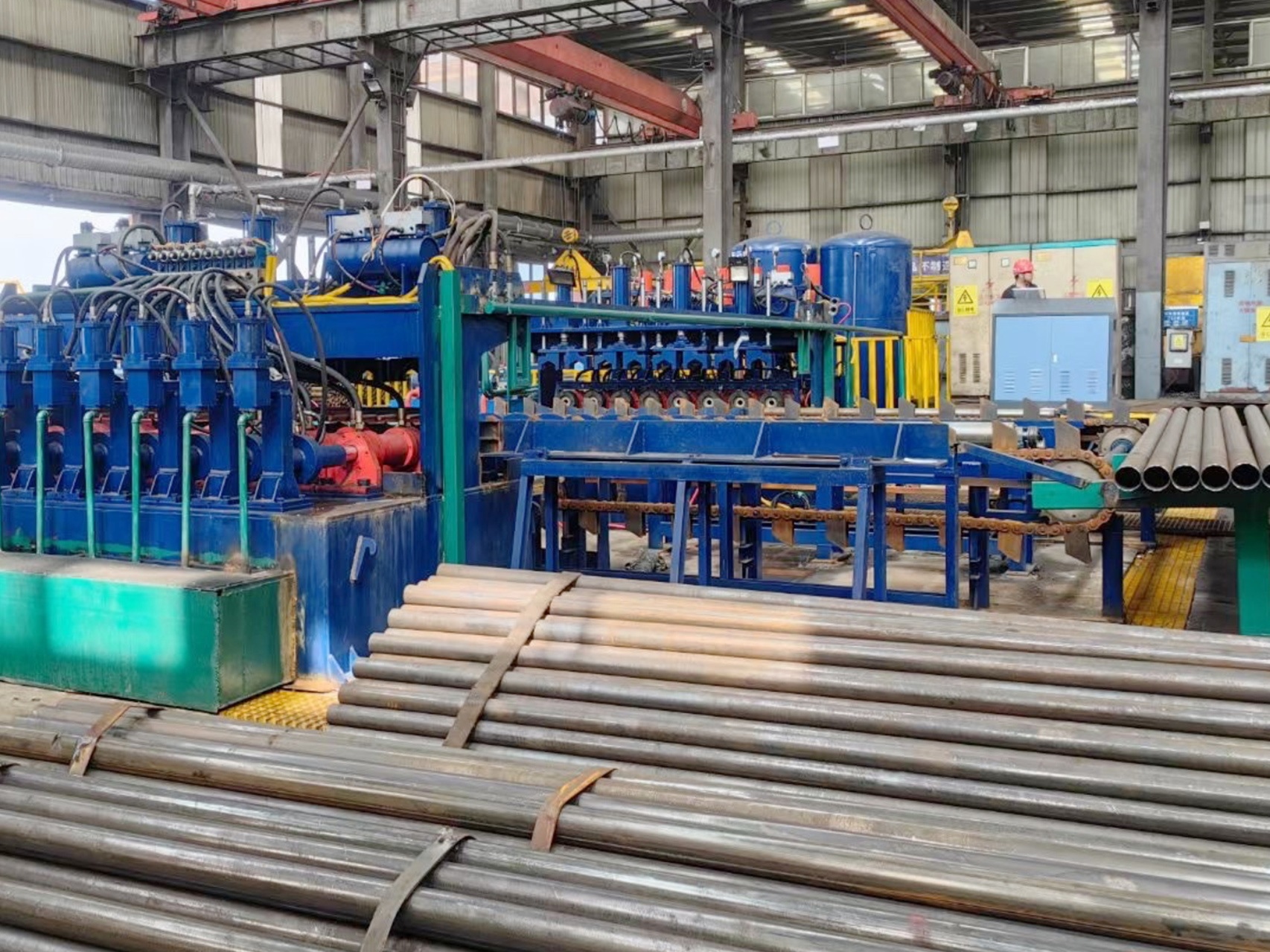

A steel pipe hydrostatic testing machine is primarily used to determine whether a pipe can withstand the specified internal water pressure without unacceptable leakage or pressure loss.
This makes hydrostatic testing particularly useful for identifying:
- Through-wall leakage paths
- Open defects that communicate with the pipe interior
- Pressure-boundary failures
- Certain defects that become evident only when the pipe is pressurized
However, hydrostatic testing should not be described as a method for locating every crack, inclusion or lamination inside a pipe.
A pipe can pass a hydrostatic test while still containing a discontinuity that does not create a leakage path under the specified test conditions. That is why hydrostatic testing and nondestructive examination are often used together.
For equipment selection, the distinction matters: the purpose of a hydrostatic tester is pressure integrity, not detailed flaw imaging.
2. Ultrasonic Testing: Internal and Surface-Connected Discontinuities
Ultrasonic testing provides a different type of information.
Depending on the probe configuration, beam angle and examination procedure, a pipe ultrasonic testing machine can detect and locate discontinuities within the pipe wall. ASTM E213 specifically covers ultrasonic examination of metal pipe and tubing using pulse-reflection techniques and includes examples such as pits, voids, inclusions, cracks and splits.
Typical targets may include:
- Longitudinal cracks
- Transverse discontinuities
- Laminations
- Inclusions
- Voids
- Pits
- Weld-related discontinuities, when the inspection configuration is designed for the weld
The actual detectable defect size and orientation depend heavily on the inspection setup. Probe frequency, beam angle, coupling condition, scanning speed, wall thickness and reference standard all influence the result.
Therefore, saying that a UT machine “detects all defects” would be technically misleading.
3. Why Defect Orientation Matters
One of the less obvious factors in pipe inspection is defect orientation.
An ultrasonic beam interacts differently with a longitudinal crack, transverse crack, lamination or inclined discontinuity. A probe designed for one inspection direction may not provide equivalent sensitivity to another defect orientation.
| Defect Type | Inspection Consideration |
|---|---|
| Longitudinal crack | Longitudinal scanning or suitable angled beam required |
| Transverse crack | Transverse sensitivity may be required |
| Lamination | Beam response depends on orientation and location |
| Pitting | Surface condition and probe coupling affect detection |
| Weld discontinuity | Inspection must be configured for the weld geometry |
ASTM E213 uses artificial reference reflectors, including longitudinal and, when specified, transverse reference notches, as part of ultrasonic system standardization.
This is one reason a pipe testing machine cannot be specified correctly from pipe diameter alone.
4. What About Welded Steel Pipe?
For welded pipe, the weld zone introduces another inspection consideration.
Depending on the applicable specification, the inspection may focus on weld-related imperfections, the parent material, or the complete pipe volume.
Some steel pipe specifications permit or require nondestructive electrical examination in addition to, or in certain cases as an alternative to, hydrostatic testing. ASTM A135/A135M, for example, specifies hydrostatic testing and also identifies electromagnetic or ultrasonic testing as possible nondestructive alternatives under the applicable requirements.
The correct method therefore depends on the pipe specification and the defect being controlled.
5. One Testing Machine Does Not Necessarily Detect Everything
This is an important point for purchasing engineers.
A customer asking for a pipe testing machine may actually need more than one inspection function.
| Inspection Requirement | Appropriate Technology |
|---|---|
| Confirm pressure integrity | Hydrostatic testing |
| Locate internal discontinuities | Ultrasonic testing |
| Rapid electromagnetic screening | Eddy-current testing |
| Detect certain surface/subsurface imperfections in ferromagnetic pipe | Magnetic flux leakage |
| Inspect several defect orientations | Multiple NDT configurations may be required |
API requirements for certain tubular products similarly reference ultrasonic, flux-leakage and eddy-current methods for detecting imperfections, illustrating why inspection equipment is normally selected according to the required acceptance level and defect type.
How We Configure Pipe Testing Equipment
At Marley Machinery, we do not start with a fixed machine configuration and assume it will suit every steel pipe producer.
Our equipment is generally configured from the customer's actual requirements, including:
- Pipe OD and wall thickness
- Pipe length
- Seamless or welded construction
- Material grade
- Required inspection method
- Applicable standard
- Defect types of concern
- Acceptance level
- Production speed
- Automation requirements

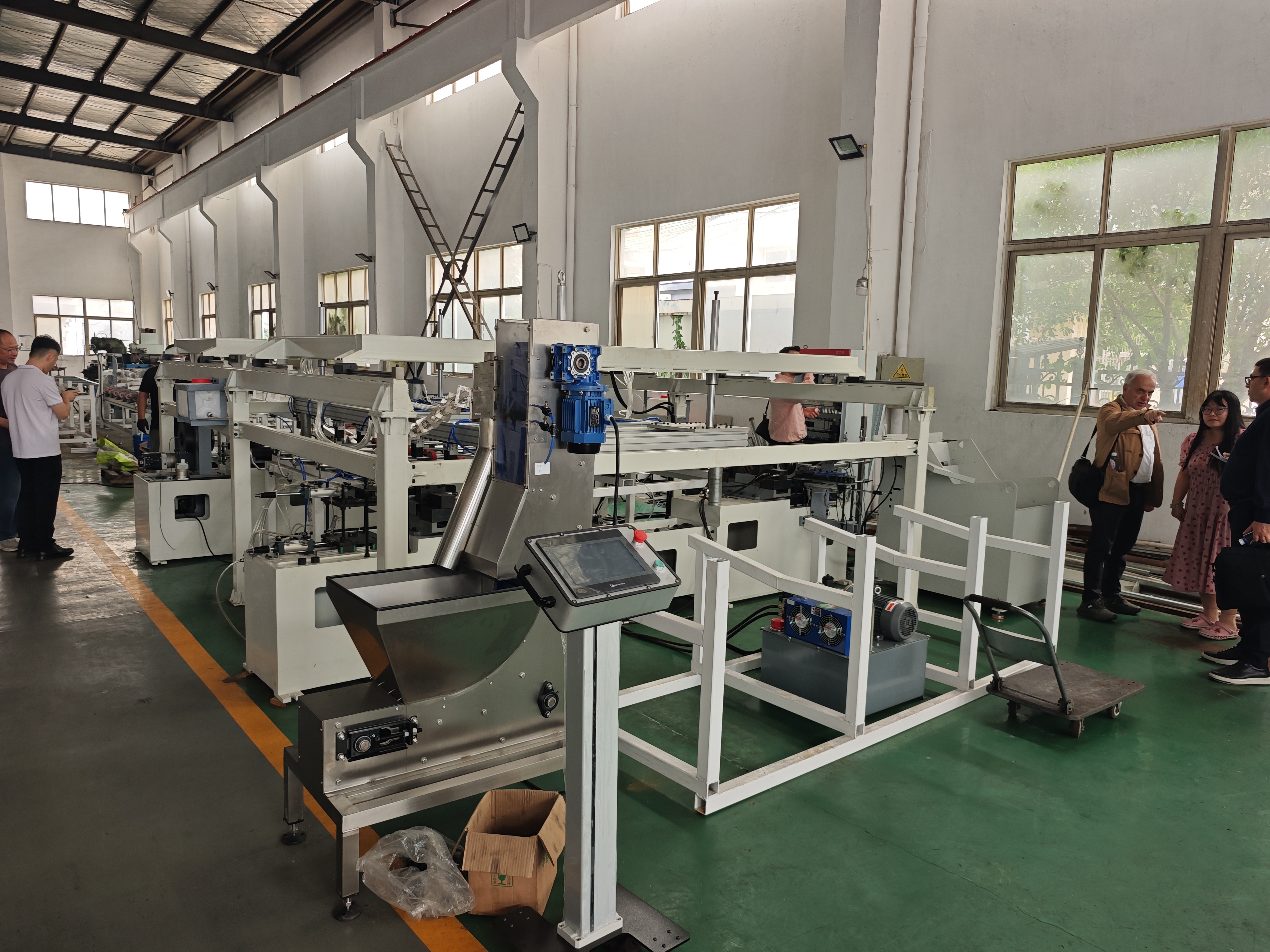

For a hydrostatic testing line, this information determines the pressure range, sealing arrangement, filling system, pressure-control system and handling configuration.
For ultrasonic inspection, the pipe dimensions and required defect sensitivity influence probe arrangement, scanning method, coupling system and reference calibration.
This is why two customers purchasing equipment described broadly as a “pipe testing machine” can require very different machine configurations.
The most useful way to ask “What defects can a pipe testing machine detect?” is to first ask:
What defect are we trying to detect, and what inspection method does the governing specification require?
Hydrostatic testing is principally a pressure-integrity test. Ultrasonic testing can identify and locate a wider range of material discontinuities, including cracks, inclusions, voids and pits. Other electromagnetic methods address different inspection requirements.
No single test should be presented as a universal replacement for the others.
